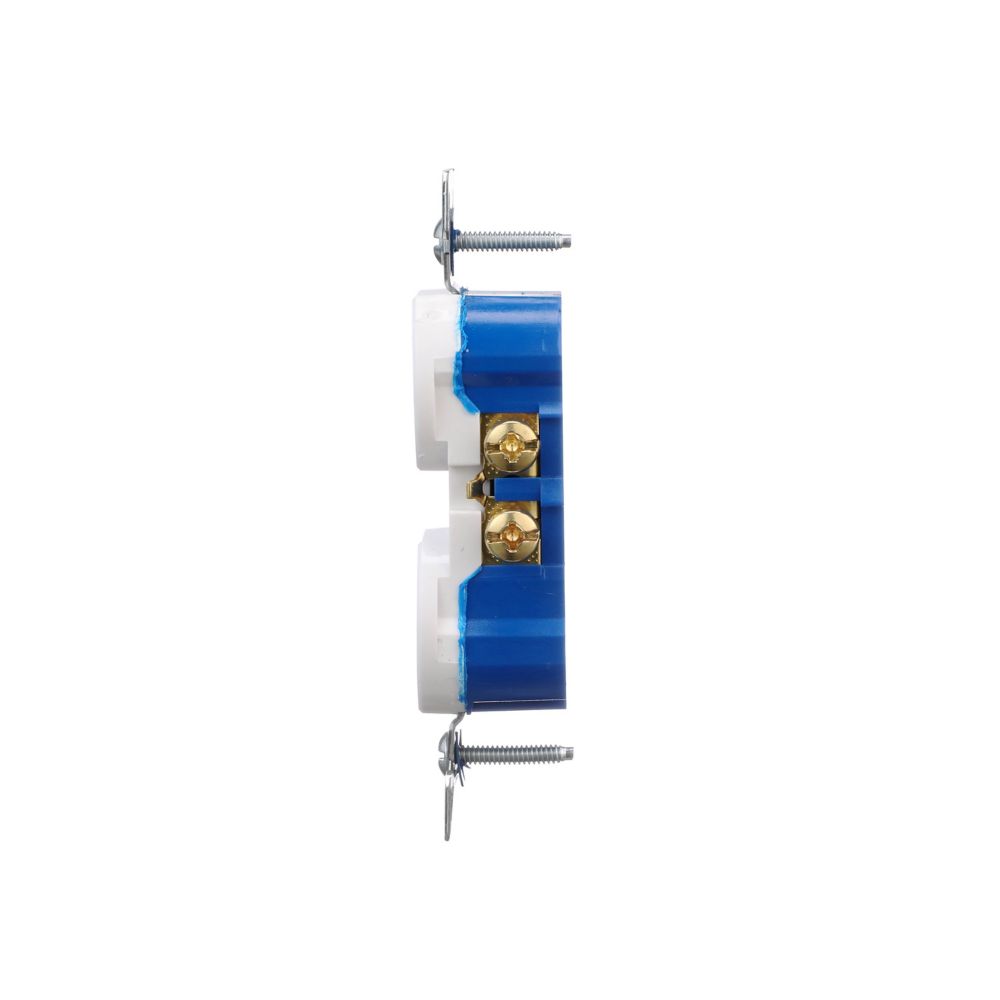

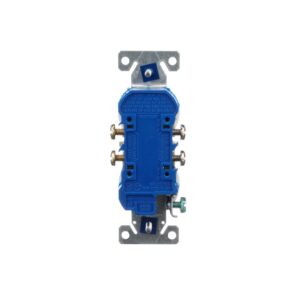

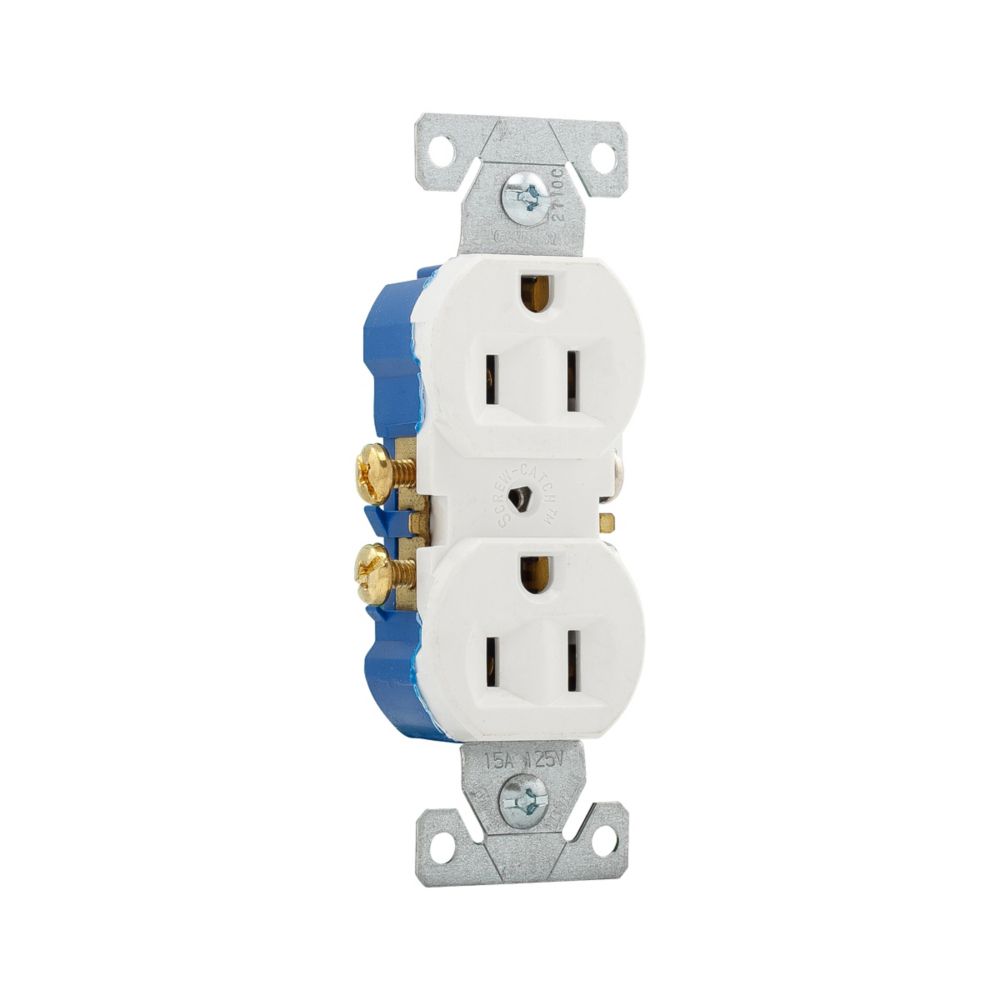

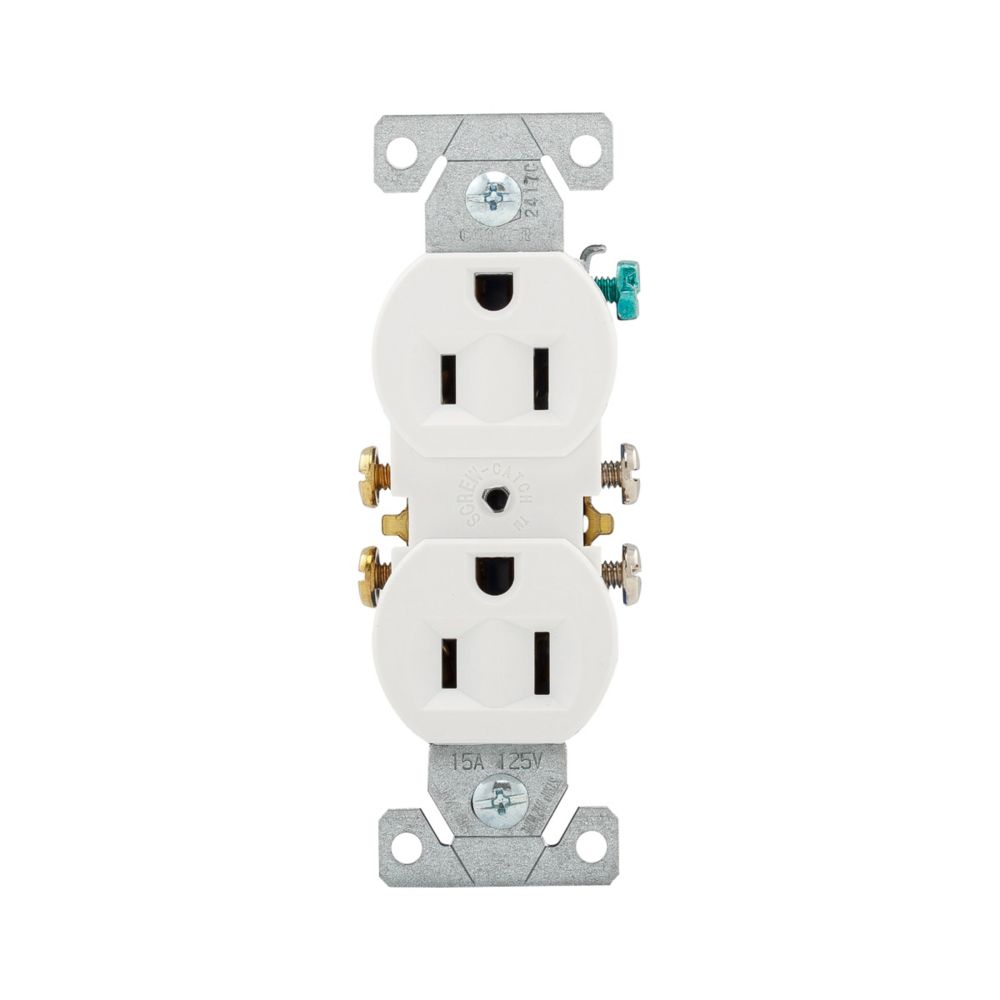

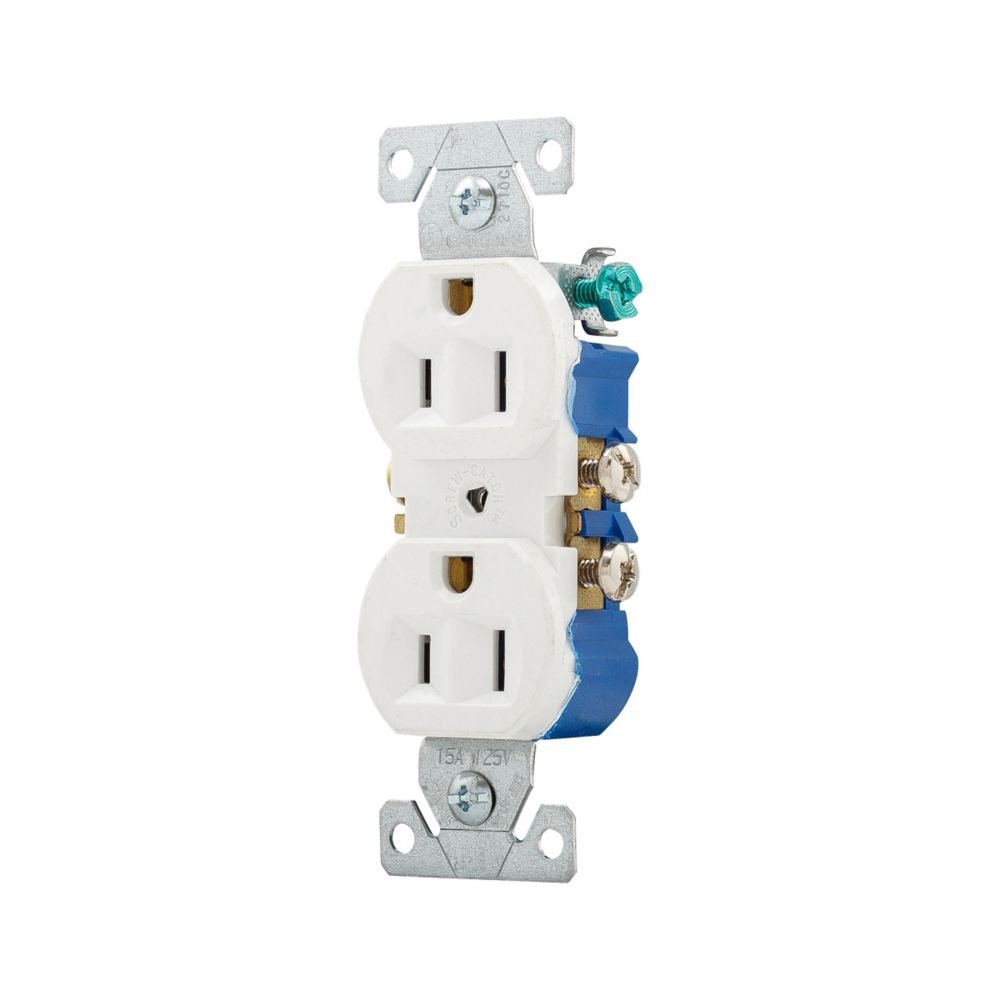

| PRODUCT NAME | Eaton residential grade duplex receptacle |
| CATALOG NUMBER | 270W |
| UPC | 032664750830 |
| PRODUCT LENGTH/DEPTH | 1.31 in |
| PRODUCT HEIGHT | 4.19 in |
| PRODUCT WIDTH | 0.69 in |
| PRODUCT WEIGHT | 0.131 lb |
| WARRANTY | Refer to warranty document |
| COMPLIANCES | RoHS Compliant, NAFTA |
| CERTIFICATIONS | UL, NOM, Federal Specification Classification 6233 01 |
| DEVICE TYPE | Receptacle |
| COLOR | White |
| FACE/BODY MATERIAL | Impact-resistant thermoplastic |
| WIRING METHOD | Side and push |
| MATERIAL | Thermoplastic |
| MOUNTING METHOD | Flush |
| ALLOWABLE WIRE SIZE | #14-10 AWG |
| AMPERAGE RATING | 15A |
| NUMBER OF POLES | Two-pole |
| CONTACT MATERIAL | Brass |
| TYPE | Duplex receptacle |
| DEVICE GRADE | Standard grade |
| NEMA CONFIGURATION | 5-15R |
| STYLE TYPE | Standard |
| DESIGN TYPE | Straight blade |
| CONNECTION TYPE | Screw |
| NUMBER OF WIRES | 3 |
| RECEPTACLE TYPE | Duplex |
| VOLTAGE RATING | 125V |
| APPLICATION | Commercial/residential |
| TORQUE RATING | 14 lbf-inch |
| PACKAGING TYPE | Core pack |
